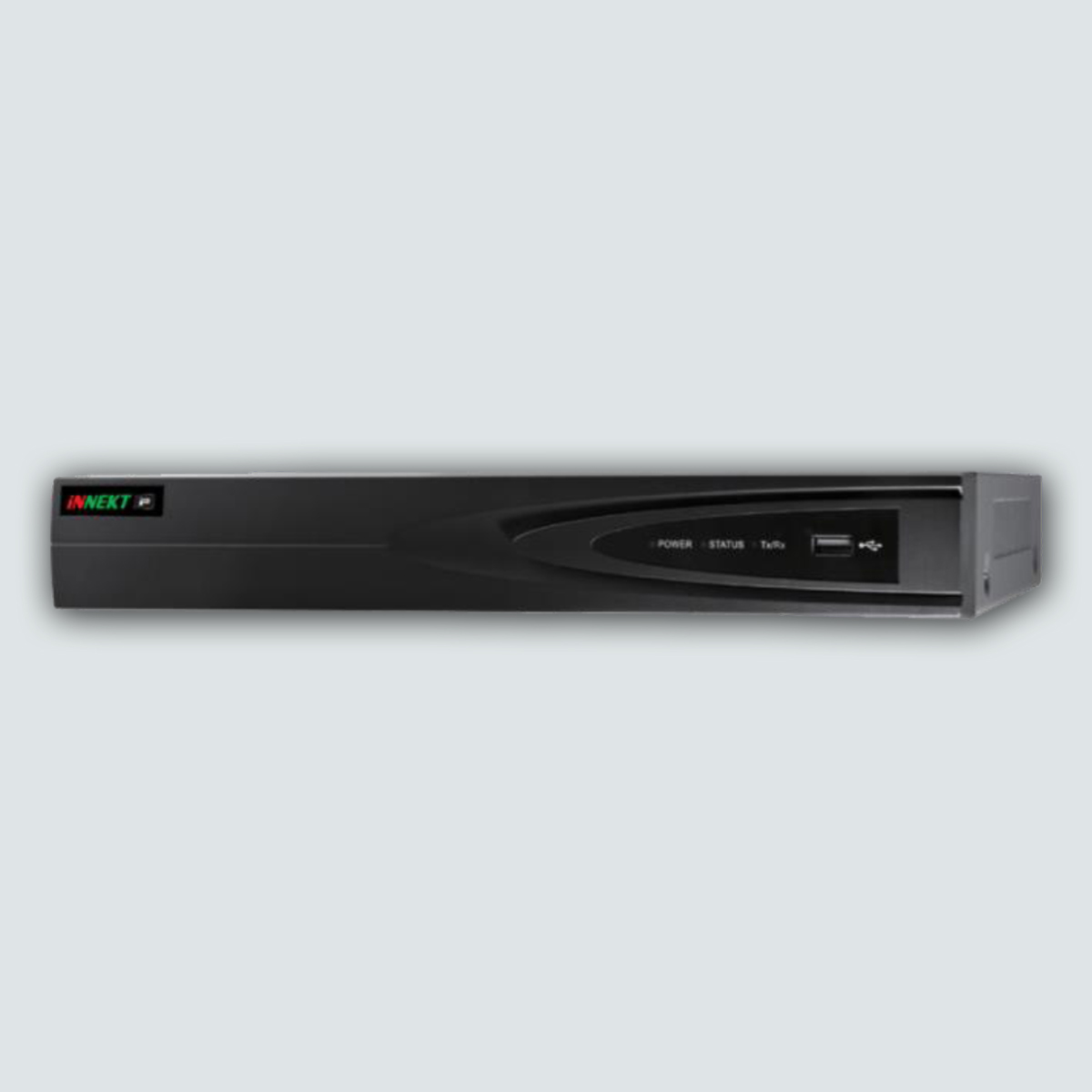

ZKN216P

NVR

ยี่ห้อ :  iNNEKT

ประเภทสินค้า : NVR

DATASHEET

รหัสสินค้า: N/A หมวดหมู่: , ป้ายกำกับ:

รายละเอียดสินค้า

  • 16 network cameras can be connected.
  • Support live view, storage, and playback of the connected camera at up to 6 megapixels resolution.
  • Simultaneous HDMI and VGA at 1920 × 1080 resolution.
  • New GUI and support starting record with one key.
  • Multiple recording type: manual, continuous, alarm, motion, motion alarm, motion & alarm
  • Realize instant playback for assigned channel during multi-channel display mode.
  • Customization of tags, searching, and playing back by tags.
  • Playback by sub-periods
  • Locking and unlocking record files.
  • Support HDD quota and group modes; different capacity can be assigned to different channel.
  • Up to 2 SATA hard disks can be connected with up to 4TB capacity for each
  • 1 self-adaptive 10M/100M/1000M network interfaces
  • Support INNEKT DDNS (Dynamic Domain Name System);
  • Support network detection, including network delay, packet loss, etc.
  • Support enabling H.264+ to ensure high video quality with lowered bitrate.

ข้อมูลเพิ่มเติม

IP video input

16-ch

Recording resolution

6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Frame rate

Main stream 50 fps (P)/60 fps (N) Sub stream 50 fps (P)/60 fps (N)

HDMI / VGA output

1-ch, resolution: 1920 x 1080 /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz

SATA

2 SATA interfaces for 2 HDDs

Capacity

Up to 6TB for each disk

Network interface

1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface

USB interface

1 x USB 2.0 and 1 x USB 3.0

Protocols

PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, TCP, UDP, RTP, RTSP, UPnP, HTTPS, IPv4, IPv6

Power supply

100 -240VAC
